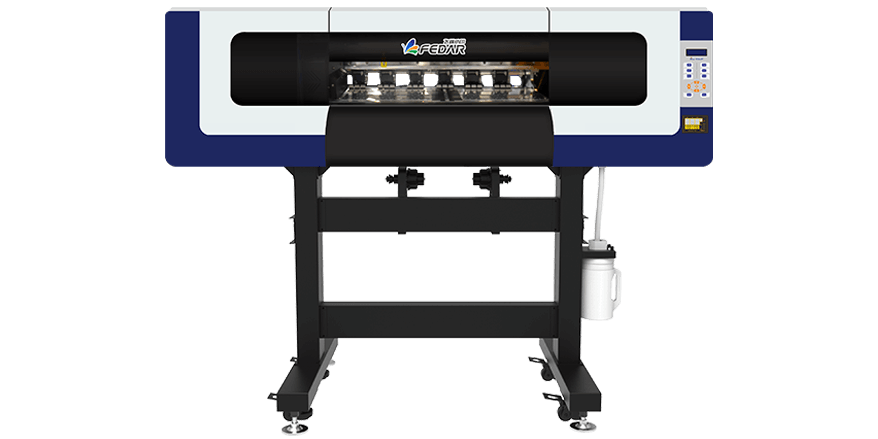

| FEDAR FD70-3 DTF Printer | ||||
| Printhead | Epson I3200-A1 | Nozzle Quantity | 3200 | |
| Printhead Quantity | 3 | Print Width | 600mm | |
| Print Colors | CMYK+LC LM 2 FLUO./ 4 FLUO.+W | Print Height | 2-5mm | |
| Max. resolution（DPI） | 3200DPI | Media | Pyrograph Film | |
| Max speed CMYK(1.9m printing width, 5% feather) | 6pass | 8㎡/h | Drying Method | Extra Dryer Device |
| Speed *Tested on linear printing without feather Function | 6pass | 8㎡/h | Ink Supply Method | Siphon Positive Pressure Ink Supply |
| 8pass | 6㎡/h | Head Moisture | Auto Head Cleaning and Moisturizing | |
| Method | ||||
| Ink Cycle | Auto White Ink Cycle | |||
| Bulk Tank Capacity | 220ML | Material Transmit | Single Motor System | |
| Ink Type | Pigment Ink | Transmission | Gigabit LAN | |
| Interface | ||||
| Max. Media Taking up (40g paper) | 100m | Max. Media Feeding(40g paper) | 100m | |
| Computer System | Windows XP/Win7 | File Forms | TIFF, JPG, EPS, PDF, etc. | |
| Operate Environment |
Temp.: 15℃-30℃, Humidity: 35℃-65℃ |
RIP Software | Maintop, Flexiprint | |
| Printer Size | 1865*676*1480mm | GW(KGS) | 205 | |
| Package Size | 2060*990*960mm | Power Supply | 210-230V, 50/60HZ, 16A | |
| Print Power: 1000W | ||||
| Dryer Power: Max.3500W | ||||
| Computer Configuration | Hard Disk: NTFS, C Disk Space: More than 100G, HARD Disk: WG500G GPU: ATI Discrete GPU, Memory: 4G, CPU: Intel I5/I7, G-Ethernet |
|||

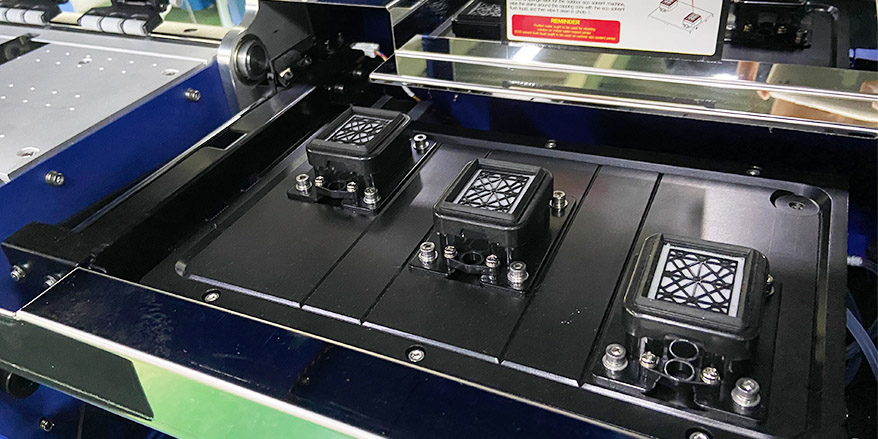

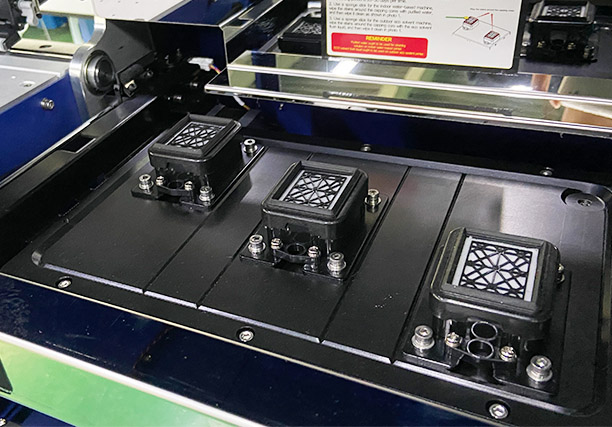

This FEDAR DTF printer is equipped with patented designed maintenance capping station. It's lifted up and down via column driven by motor in the middle, which greatly maintain the balance of capping comparing the traditional gear drive.
The FD70 THREE-HEAD DTF Printer has anti-collision carriage.

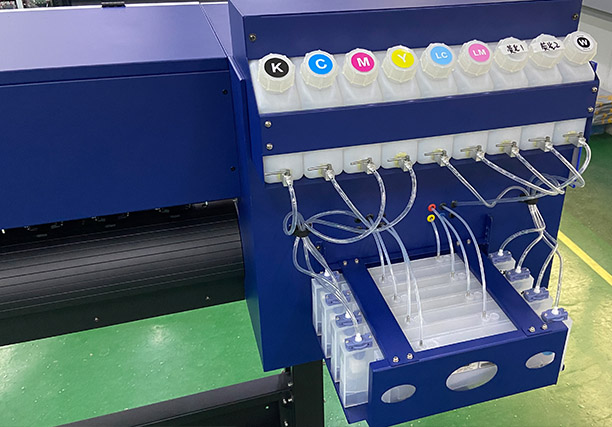

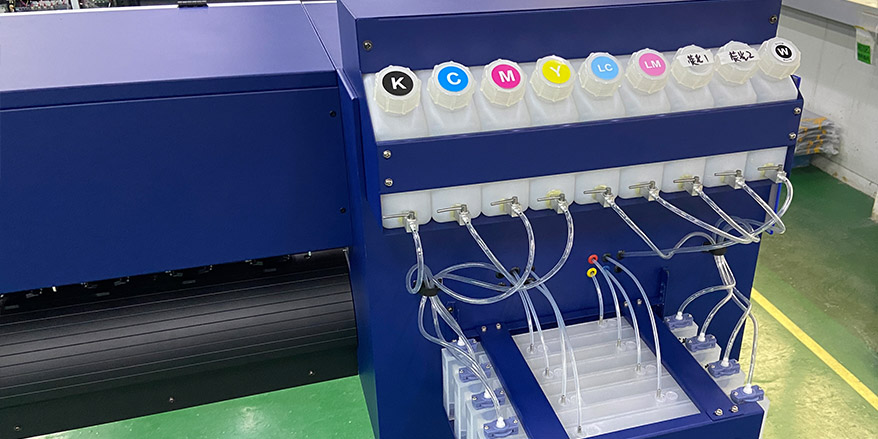

The top grade digital DTF printer equips 1.5 L big ink tank circulatory system and stirs white ink intermittently, the user can adjust it on printing software.
Multi - line pinch rollers make paper feeding more accurate during this DTF digital printer working process.
The FD70-3 DTF printer uses left metal mirror design easily for operator to watch condition of printheads.
The FEDAR DTF 60CM digital printer uses leadshine business integrated servo motors are used on both X&Y direction.
The FD70-3 DTF printer equips import ink chain stable working during high speed printing.
A standard Feed&Take-up System from china manufacturer which can make the FD70-4 DTF printer work more efficiently.
Capping Station
Carriage
Ink Tank
Pinch Rollers
Mirror
Motor
Ink Chain
Feed & Take-up System
