FEDAR FD1924 Sublimation Digital Textile Printer
Printhead	Epson I3200-A1		Nozzle Quantity	3200
Printhead Quantity	24		Print Width	1900mm
Print Colors	CMYK		Print Height	2-5mm
Max. resolution（DPI）	3200DPI		Media Transmit	Auto Media Feeding and
				Taking-up System, Roll to Roll
Max speed CMYK(1.9m printing width, 5% feather)	1pass	960㎡/h	Drying Method	Extra Dryer Device
			Ink Supply Method	Siphon Positive Pressure Ink Supply
			Head Moisture	Auto Head Cleaning and Moisturizing
Speed	1pass	960㎡/h	Method
*Tested on linear printing without feather Function	2pass	480㎡/h	Print Media	Transfer Paper

Bulk Tank Capacity	15L		Material Transmit	Ten Thousand Meters Unwinding
Ink Type	Sublimation Ink		Transmission	Gigabit LAN
			Interface
Max. Media Taking up (40g paper)	10000m		Max. Media Feeding(40g paper)	10000m
Computer System	Win7 64 Bit / Win10 64 Bit		File Forms	TIFF, JPG, EPS, PDF, etc.
Operate Environment	Temp.: 15℃-30℃ Humidity: 35℃-65℃		RIP Software	Maintop, Flexiprint, Neostampa

Printer Size	400018351880mm		GW(KGS)	1500
Package Size	415013702140mm		Power Supply	210-230V, 50/60HZ, 16A
				Print Power: 15KW
				Dryer Power: Max.10.8KW
Computer Configuration	Hard Disk: NTFS, C Disk Space: More than 100G, HARD Disk:WG500G GPU: ATI Discrete GPU,
	CPU: Intel i5/i7, Gigabit LAN
Standard Configuration	Ink Level Alarm System

Capping Station

Finished integrated capping station equipped with advanced intelligent nozzle cleaning and moisturizing device, providing safe and convenient nozzle cleaning and maintenance functions, making operation and maintenance more convenient. The working principle of the automatic ink cleaning function: the digital printing machine draws the ink through the nozzle of the ink pump in the ink stack to achieve the purpose of cleaning and moisturizing, preventing the nozzle from clogging.
Ink Tank

This Fedar FD1924 Sublimation Printer adopts 15 liters bulk tanks with an ink starving alarm system to make sure of a good print job. The powerful continuous supply ink supply system provides support for the improvement of production efficiency, avoiding the frequent shortage of ink in production and the heavy work caused by back and forth inspection.
Guide Rail

Fedar Sublimation Printer has a design equipped Japan THK super muteSS+ linear guide rail, low noise, high precision, excellent durability.

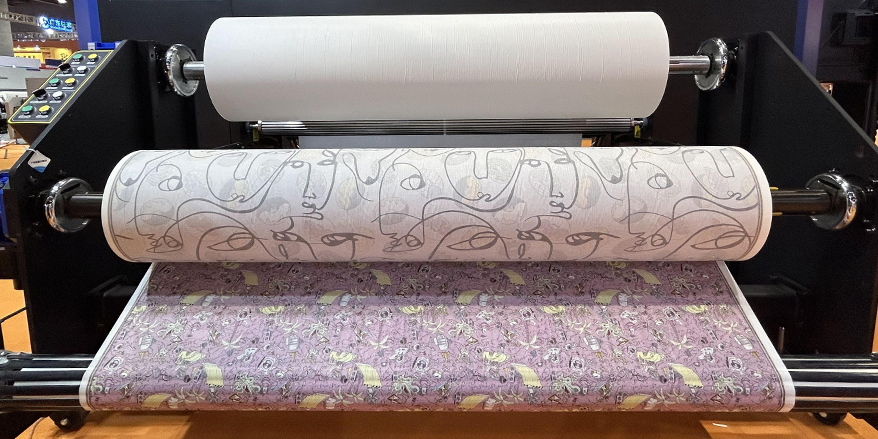

Feeding & Take-up System

This auto feeding and taking-up device with tension sensor bar makes the force even and makes the paper smoother. It's simple and convenient to take up printed media.
